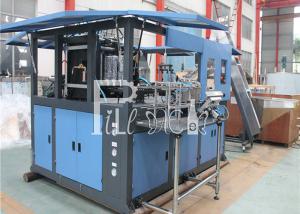

Automatic 4 Cavity PET bottle blow molding machine suit
>>> Product Introduction:
FP-4000 4 cavity Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
>>> Product Features:
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Ideal cooling system make the finished bottles without any flaws.
7). Easy for you to install,test and start up.
8). Low rejection rate: less than 0.2 percent.
>>> Flow and Auxiliary machines:
HP Air Compressor → Air Tank → Air Filter →Air Dryer → Air Filter → Chiller → LP Air Compressor →Automatic Bottle Blowing Machine
1. Auxiliary Machine To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need.
2. Bottle Preform If you need, we can also help you find the bottle preform in china.
>>>Technical Paramters:
| | Product material | PET |
| Volume | 0.1L-2L |
| Theoretical output | 3200-4000BPH |
| Body diameter | 20mm-100mm |
| Neck diameter/Height | 15mm-38mm/50mm-350mm |
| | Mold Dimenstion (LxW) | 500*500mm |
| Mold thickness | 240mm |
| Cavity | 4cavities |
| Blow mould | 250-2000ml |
| | Main machine (L×W×H) | 1900*1860*1930mm |
| Main machine weight | 3600 |
| Preform unscramble | 2000*950*2480mm |
| Preform unscramble weight | 250Kg |
| Rated Power/Really use Power | 49kw/14kw |
| Items | Nme of machine | Model | Size | Qty |
| 1.1 | LP Air Compressor | 1.6 m3/min 10Kg | 2000*1050*1900 | 1 set |
| 1.2 | HP Air Compressor | 2.0 m3/ min30Kg | 2000*1750*1500 | 1set |
| 1.3 | Air filter | 2.0 m3/min 30Kg | 750*350*350 | 2sets |
| 1.4 | Blow mold | 250-2000ml | / | 1set |
| 1.5 | Air dryer | 2.0 m3/min 30Kg | 1050*650*1100 | 1set |
| 1.6 | Air Tank | 0.6 m3/min 30Kg | 1200*1100*1650 | 1set |
| 1.7 | Mould Chiller | 3HP | 850*560*870 | 1set |
